BRONZE HORIZONTAL CHECK VALVE (SCREWED)

1010

SPECIFICATIONS & FEATURES:

  • Screwed female ends to IS:554/BS:21/ISO:7
  • Screwed Bonnet , Integral seat meant for horizonatl lines only.
  • Permits flow in one dorection and close automatically if the flow reverses.
  • Meatl disc is mushroom shaped with spearichal seating surface.
  • Disc is guided in body as well as in Bonnet.
  • Medium Pattern.
  • Can also be Provided with O ring Type seating.

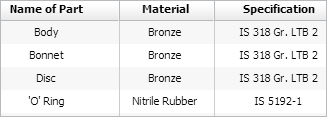

    • Materials & Construction
    Suitability

    Size / Dimensions:





    BRONZE HORIZONTAL CHECK VALVE NO.9 (SCREWED)

    1013

    SPECIFICATIONS & FEATURES:

  • Screwed in bonnet meant for horizontal lines only.
  • Permits flow in one direction and shuts automatically if the flow reverses.
  • Renewable 13% cr.stainless steel (AISI 410) working parts.
  • Metal disc is mushroom shaped with spearichal seating surface.
  • Disc is guided in Bonnet.
    • Also available with PTFE seating for Air and gas applications, at a nominal extra peice.

    Materials & Construction
    Suitability


    Size / Dimensions:




    BRONZE GATE VALVE CLASS-2 (SCREWED)

    SPECIFICATIONS & FEATURES:

  • Screwed in Bonnet Non rising stem solid wedge.
  • Provided with unbreakable sheet metal handwheel for conventional operation.
  • High quality PTFE Gland packing.
  • Design standard IS 778, class-2;
  • Provision for re-packing under pressuure.
    • Also avialable with open-shut indicator and locking Device ,at a nominal extra price.
    1035A

    Materials & Constructions
    Suitability


    Size / Dimensions:


    BRONZE VERTICAL CHECK VALVE (SCREWED)

    Specifications & Features:

  • Single piece Design
  • Meant for vertical lines only.
  • Permits flow in one direction and closes automatically if the flow reverses.
  • Design standard IS 778,class-1.
  • Can also be Provided with Rubber O ring seating also,at no extra cost..
    • 1037

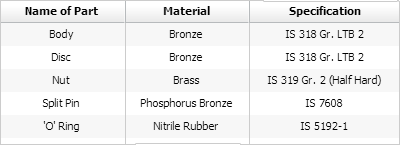

    Materials & Constructions
    Suitability

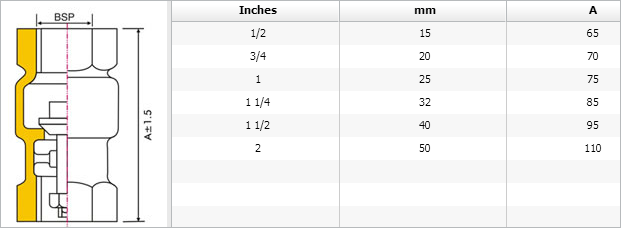

    Size / Dimensions:


    BRONZE HORIZONTAL CHECK VALVE (SCREWED)

    1038

    Specifications & Features:

  • Screwed female ends to IS:554/BS:21/ISO:
  • Screwed in bonnet meant for horizontal lines only.
  • Metal disc is mushroom shaped with spearichal seating surface.
  • Permits flow in one direction and shuts automatically if the flow reverses.
  • Design standard IS 778,class-1.
  • Disc is guided in Body as well in Bonnet.
    		•
    Materials & Constructions
    Suitability

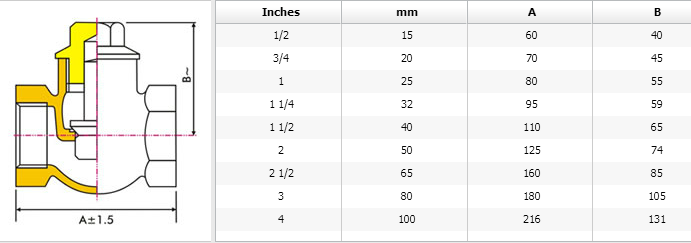

    Size / Dimensions:
